High-Speed Micro DInterconnects

SCROLL DOWN

AirBorn's MicroSI is designed to meet requirements for signal integrity applications while delivering the reliability customers have come to expect from AirBorn. microSI delivers flexibility by offering vertical board-mount, right-angle board-mount, and cable I/O configurations supporting 1X, 4X, and 8X 100 Ω differential serial buses.

microsi Contacts

The MIL-DTL-83513 (Micro-D) qualified contact system and metal shells ensure ruggedness and durability no matter how rough the ride in the air or battlefield.

Military Spec. MIL-DTL-83513

High-Speed Micro D Connectors

Shell-to-shell interface protection stops electro-magnetic contamination. EMI can affect the performance and lifespan of equipment, and cause data errors, malfunctions, and reduced performance.

EMI Gasket

Polarization Options

Utilize different keying options to prevent incorrect mating. Keying is only required if there is more than one similar/identical connector. The aim is to enable the assembly operator to mate quickly and error-free.

Choose from 3 options to protect your cables for the long haul.

Cable Protection

Halar® Metal Braid Both Together

Halar ®

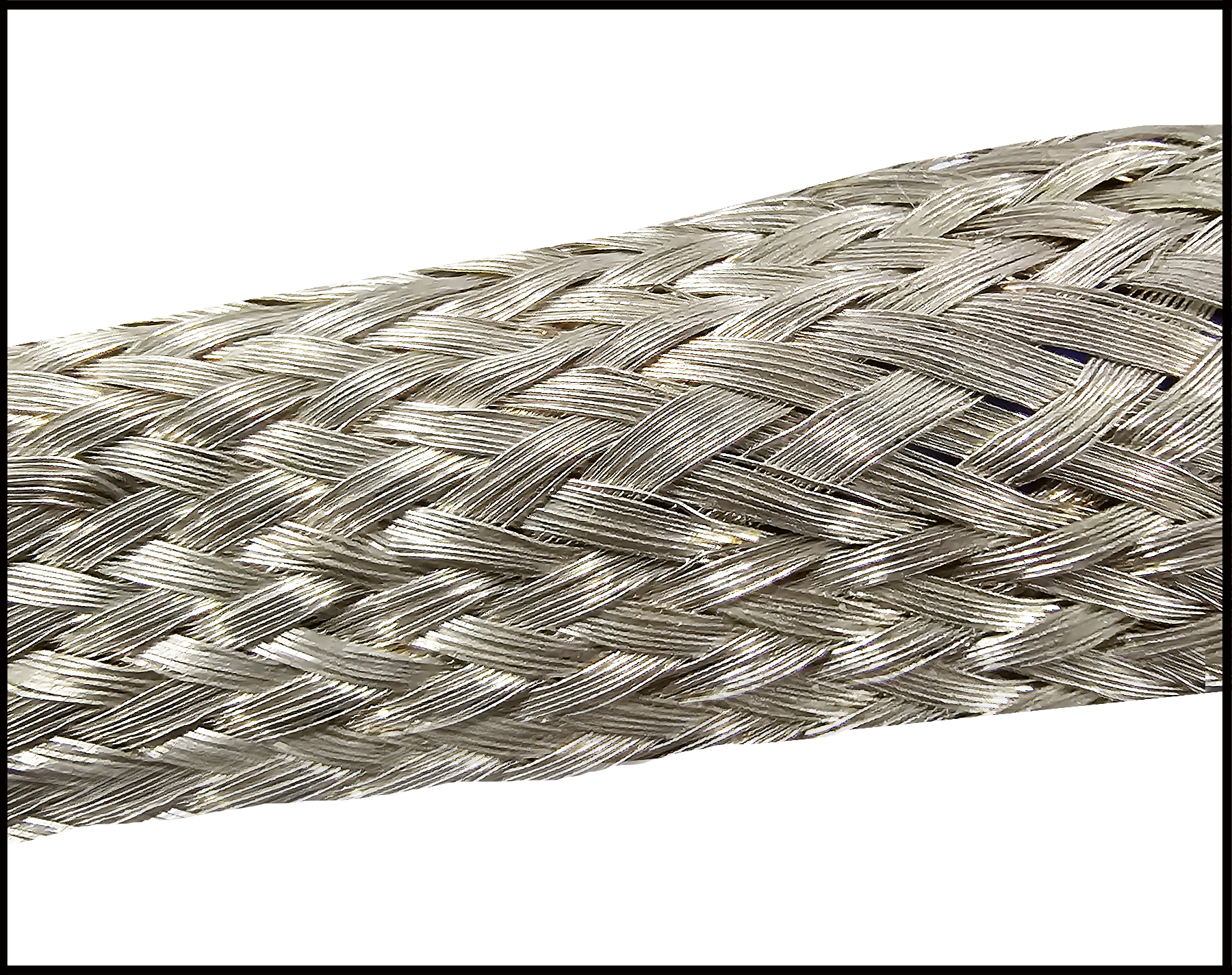

Metal Braid

Both

Applications

microsi Contacts

microsi Features

microsi Benefits

Intro to microsi

Airborn Advantage

Right Angle

Metal Bodies, Board Mount

Straight Vertical

Metal Bodies, Board Mount

Pre-Wired I/O

Metal Bodies, Cable Mount

Jumper Assemblies

Metal Bodies, Jumper Cables

Plug

Receptacle

Plug

Receptacle

Plug

Receptacle

Plug

Receptacle

Applications

microsi Contacts

microsi Features

microsi Benefits

Intro to microsi

Airborn Advantage

Multiple Points-Of-Contact

The single attribute that best exemplifies rugged & reliable connectors versus commercial-grade connectors, its "multiple points-of-contact". One brief moment of de-mating at the contact level can have devastating results.

Contact Engagement

Contact Normal Force

The length of contact made between the pin and socket.

The amount of force that each ‘tine’ of the spring contact makes to the mating contact.

MicroSI Contact Style

Contact mating forces can differ and affect quality. MicroSI contacts are cylindrical, and the normal force assures constant pressure and a reliable connection. Stamped and Formed manufacturing ensures consistently tight tolerances and performance.

Stamped & Formed Design

Applications

microsi Contacts

microsi Features

microsi Benefits

Intro to microsi

Airborn Advantage

Applications

RC Series

Avionics

Helicopters

Satellites

Radar Systems

Electronic Warfare

Commercial Air
